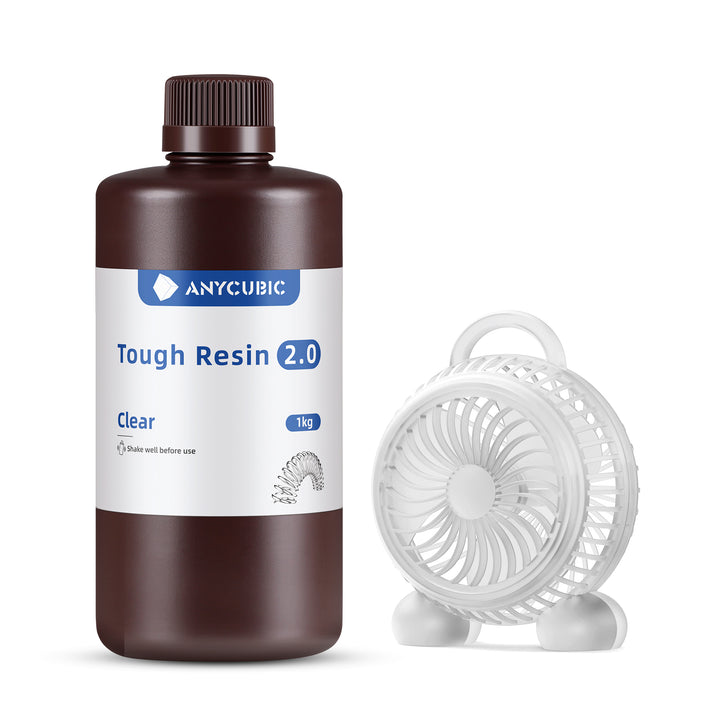

Anycubic Tough Resin 2.0
- Item Id 32478
- Variation ID 16924
- EAN 6974662350794
- Mfg part No, SRX2CL-102B
Anycubic Tough Resin 2.0 is designed for 3D printing projects that require both durability and flexibility. Compared to standard resins, it offers improved impact resistance and reduced brittleness, making it ideal for functional prototypes and detailed models. The resin is formulated to withstand mechanical stress, with a tensile strength of 30-42 MPa and elongation at break between 60-72%, ensuring that printed models can endure bending and impact without cracking. Additionally, its low shrinkage rate of 5.1-6.2% helps maintain dimensional accuracy during curing.
Key Features
Compatibility and Printing Performance
Tough Resin 2.0 is engineered for UV wavelengths between 365-405 nm, making it compatible with most LCD 3D printers. With a viscosity of 450-500 cP at 25°C, it ensures smooth printing and easy handling. The resin cures efficiently, producing high-precision prints with smooth surfaces. It is also available in multiple colors, allowing for a range of design possibilities.
Mechanical and Physical Properties
The resin's physical and mechanical properties contribute to its reliability in demanding applications. It has a density of 1.10-1.15 g/cm³ and a hardness of 82-84 Shore D. Its flexural strength ranges from 42-52 MPa, while its flexural modulus is between 1500-2000 MPa. The heat distortion temperature is 50-55°C, ensuring stability in a variety of conditions. With a shelf life of 1.5 years, the resin remains effective over time if stored properly.
Recommended Printing Parameters
To achieve optimal results, Tough Resin 2.0 should be used with the recommended printing parameters. A layer thickness of 0.05 mm ensures fine detail, while standard exposure times range from 1.5 to 3.6 seconds. The bottom layer exposure time should be set between 20-40 seconds, with 5-6 bottom layers for proper adhesion. The Z lift distance should be adjusted between 5-10 mm, with a lift and retract speed of 2-6 mm/s to ensure smooth layer transitions.
Safety and Environmental Considerations
Safety and environmental considerations are important when handling resins. Tough Resin 2.0 is formulated with environmentally friendly ingredients, emitting minimal odor and reducing irritation during use. Proper protective equipment should always be worn, and resins should be handled in well-ventilated areas. The combination of strength, flexibility, and precision makes Anycubic Tough Resin 2.0 a versatile choice for various 3D printing applications.
