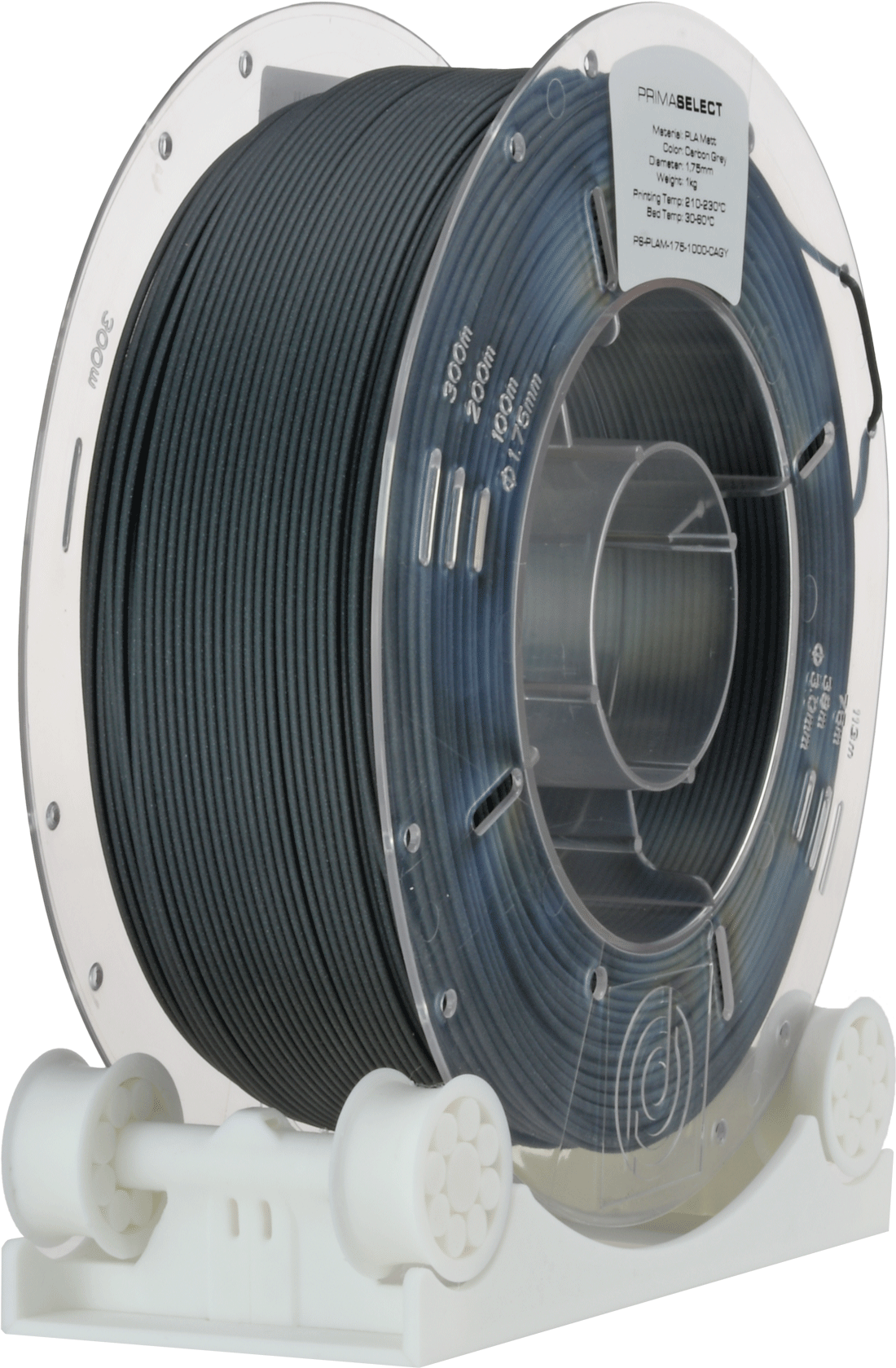

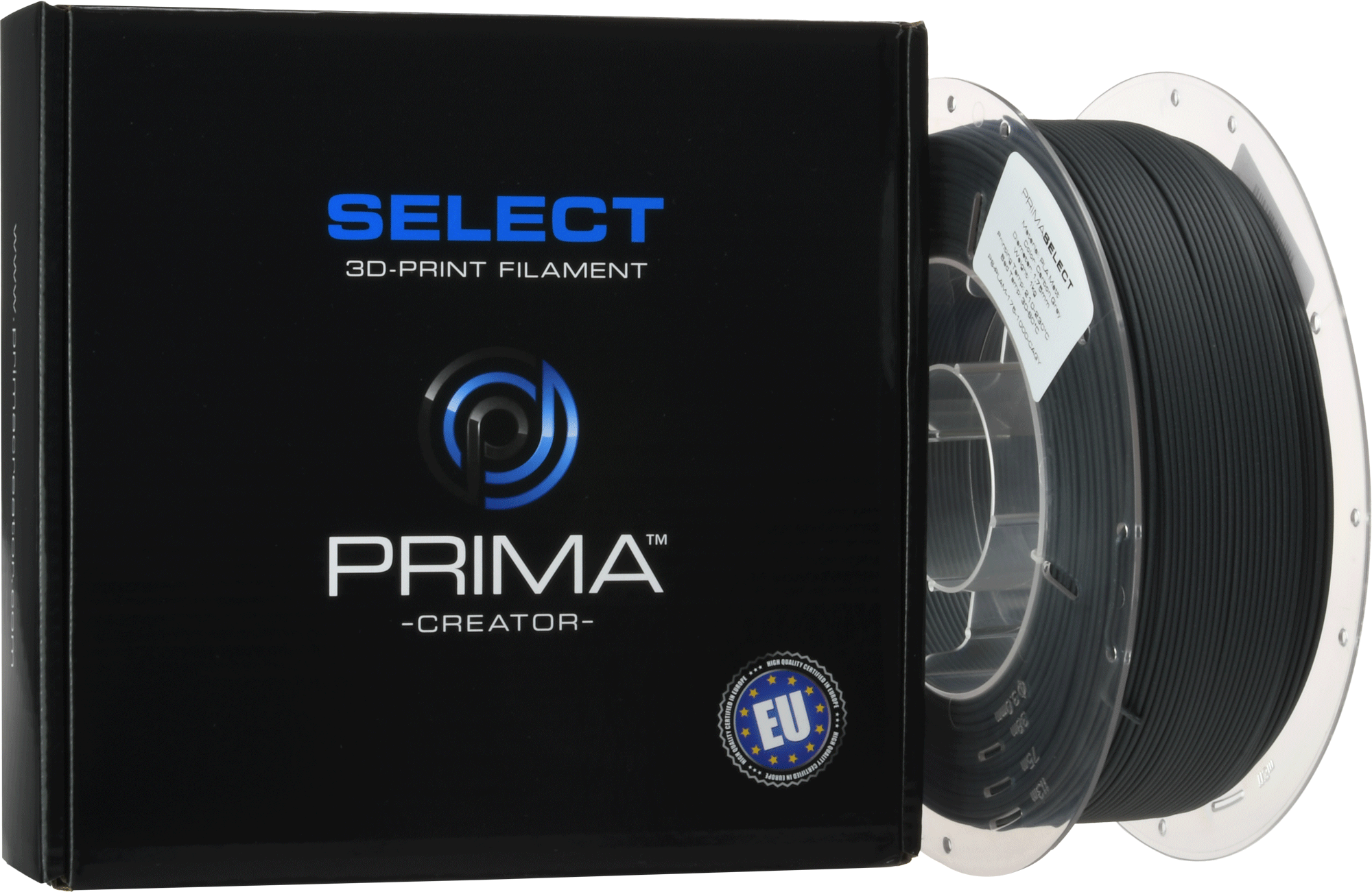

PrimaSelect PLA Matt
- Item Id 30284
- Variation ID 13163
- EAN 7340002120942
- Mfg part No, PS-PLAM-175-1000-CAGY
Basic Data | |
Material | PLA |
Diameter | 1,75 mm |
Weight | 1,00 kg |
Length | 297 m |
Printing Parameter | |
Recommended Min Print Temp | 210 ºC |
Recommended Max Print Temp | 230 ºC |
Recommended Min Bed Temp | 30 ºC |
Recommended Max Bed Temp | 60 ºC |
Recommended Min Print Speed | 40 mm/s |
Recommended Max Print Speed | 80 mm/s |
Recommended Min Fan Speed | 50 % |
Recommended Max Fan Speed | 100 % |
General | |
Specific Gravity | 1,4 g/cm3 ISO 1183 |
Temperature | |
Vicat softening temp | 57 °C ISO 306 |
Heat Deflection Temp | 58 °C ISO 75 |
Elongation | |
Elongation at Break | 3 % ISO 527 |
Flexural | |
Flexural Strength | 78 MPa ISO 178 |
Flexural Modulus | 2200 MPa ISO 178 |
Other | |
Impact Strenght Un-notched | 40 KJ/m2 ISO 179 |
Impact Strength | 8 KJ/m2 ISO 179 |
Spool Type / Specs | |
1. PrimaSelect 2024 750g/1kg | |
Ø Ds | 200 mm |
Ø ds | 55 mm |
Ws | 63 mm |
DB | 222 mm |
WB | 70 mm |
HB | 210 mm |
Box Material | Carboard |
