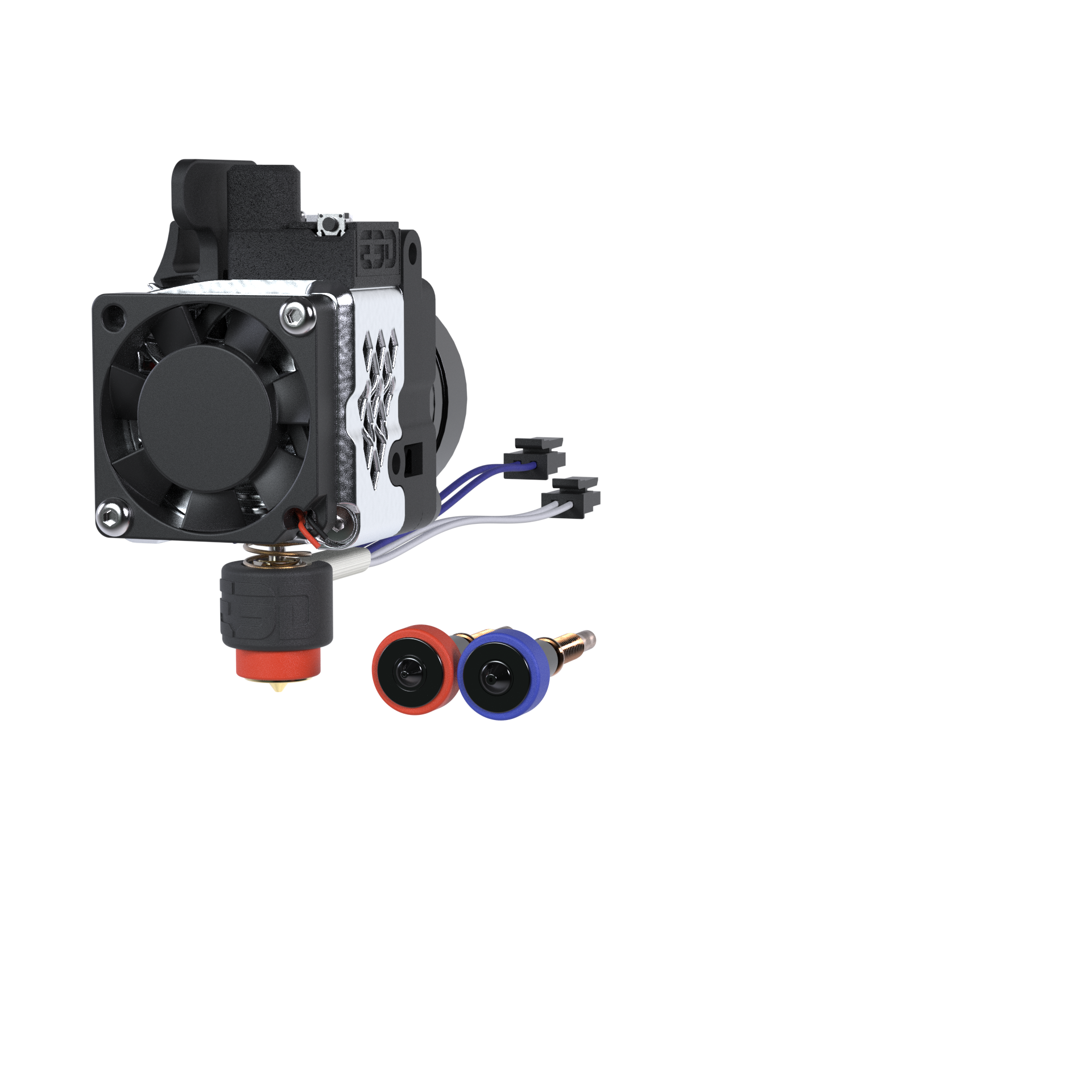

E3D Revo™ Roto Smart

  • Item Id 30461
  • Variation ID 13612
  • Mfg part No, REVO-ROTO-COLDSIDE-SENSOR-AS + REVO-HOT-KIT-HF-X-24V

Roto is the extruder that Revo deserves. It carefully balances weight (140g) and force (70N+) to provide the lightest, most power-dense 3D printing extruder on the market. This smarter version of Roto has added filament monitoring, an action button, fan speed monitoring and heatsink temperature monitoring to your arsenal. With all these features, you can implement peace of mind within your workflow with remote monitoring and quick, simple maintenance for the most hands-off 3D printing experience ever.


read more
Hotside Kit: High Flow X
Starter
High Flow
High Flow X
Genius 400
Genius Metal
Coldside Only
Voltage: 24V
12V
24V
N/A
Temperature Sensor: None
PT100
PT1000
None
424,90

Incl. VAT excl. Shipping
Questions about the product
Product description

E3D Revo Roto Smart

Roto is the extruder that Revo deserves. It carefully balances weight (140g) and force (70N+) to provide the lightest, most power-dense 3D printing extruder on the market. This smarter version of Roto has added filament monitoring, an action button, fan speed monitoring and heatsink temperature monitoring to your arsenal. With all these features, you can implement peace of mind within your workflow with remote monitoring and quick, simple maintenance for the most hands-off 3D printing experience ever.

Lightweight yet full of force

The roto gearbox consists of a planetary initial stage followed by a spur secondary stage with a dual hobb third stage. To put it concisely, this results in enough extrusion force to fully utilise our Revo High Flow nozzles' maximum volumetric flow rates while providing a favourable motor stall (rather than filament grind) failure mode.

Maintenance minded

Ease of use was a major consideration in the design of Roto. To access the hobbs all you need to do is remove three bolts to remove the heatsink and filament path whilst leaving the body of your extruder mounted in situ.We have also revamped the filament tensioning system, providing a simple bi-stable mechanism that either provides the optimal tension or completely releases the tension to help with filament loading and cold pulls. This means you can change the nozzle and release the filament with one hand.

Cool Design

Roto features a first of its kind 3D printed metal heatsink. SLM 3D printing gave us unparalleled design freedom, which means beyond the obvious cool factor of using this technology, the design has been highly optimised. The heatsink prevents heat creep by reducing heat build-up via conduction and directs air through the air-break to disrupt the radiating heat from the HotSide, resulting in the most thermally effective heatsink we have ever produced.

What's in the Box? - Roto

  • 1 x Revo Motor with cable
  • 1 x 3 wire fan with cable
  • 1 x Fixings kit
  • 1 x Roto coldside assembly
  • 1 x Bowden tubing
  • 1 x Heatsink thermistor with cable
  • 1 x Filament sensor with cable

Starter Pack:

  • 1 x 0.6mm Brass Revo Nozzle
  • 1 x 0.4mm Brass Revo Nozzle
  • 1 x 40W HeaterCore 12V or 24V

High Flow Pack:

  • 1 x 0.4mm High Flow Brass Nozzle
  • 1 x 0.6mm High Flow Brass Nozzle
  • 1 x 60W HeaterCore
  • 1 x Fully-Loaded Sock Pack
  • 1 x 0.4mm Brass Nozzle

High Flow X Pack:

  • 1 x 0.4mm HF ObXidian Nozzle
  • 1 x 0.6mm HF ObXidian Nozzle
  • 1 x 60W HeaterCore
  • 1 x Fully-Loaded Sock Pack
  • 1 x 0.4mm Brass Nozzle

Genius 400 kit:

  • 1 x 0.40mm ObXidian Nozzle
  • 1 x 0.40mm Non-Planar Nozzle
  • 1 x 0.60mm High Temp Abrasive (HT-A) Nozzle
  • 1 x 0.60mm High Flow ObXidian Nozzle
  • 1 x 60W HeaterCore
  • 1 x High-Temp HeaterBlock
  • 1 x High-Precision Heater Cartridge
  • 1 x PT100 or PT1000
  • 1 x 0.25mm Brass Nozzle
  • 1 x Fully Loaded Sock Pack

Genius Metal Kit:

  • 1 x 0.40mm ObXidian Nozzle
  • 1 x 0.40mm Non-Planar Nozzle
  • 1 x 0.60mm High Temp Abrasive (HT-A) Nozzle
  • 1 x 0.60mm HF ObXidian Nozzle
  • 1 x 0.40mm DiamondBack
  • 1 x 60W HeaterCore
  • 1 x High-Temp HeaterBlock
  • 1 x High-Precision Heater Cartridge
  • 1 x PT100 or PT1000
  • 1 x 0.25mm Brass Nozzle
  • 1 x Fully Loaded Sock Pack
